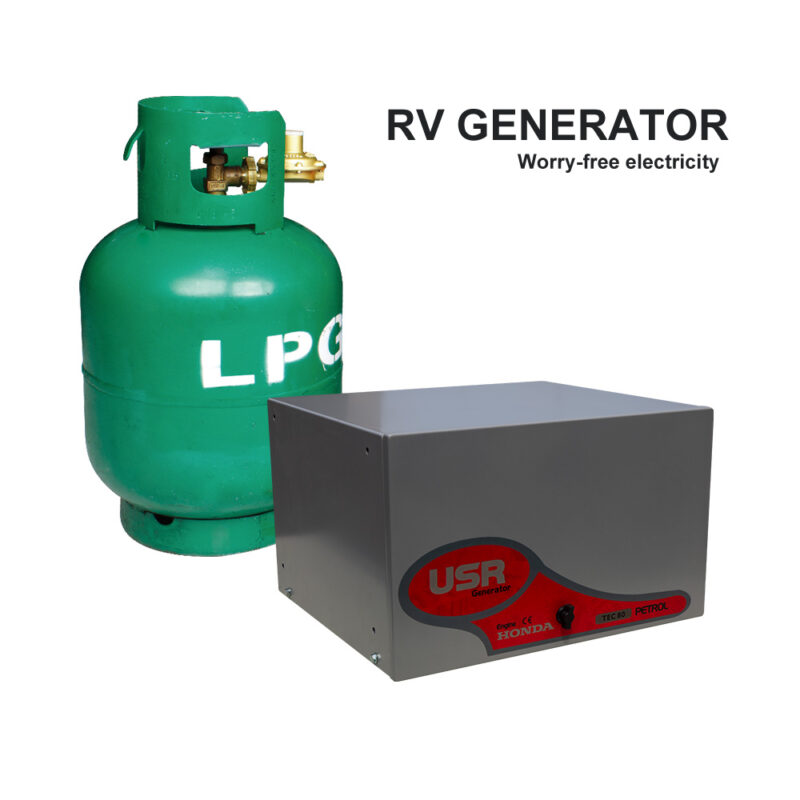

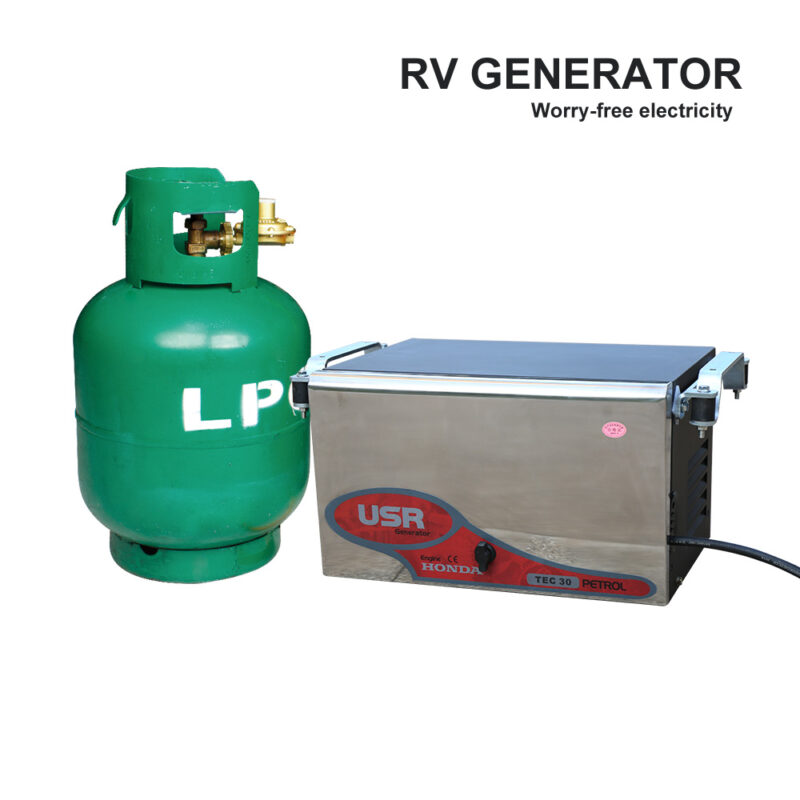

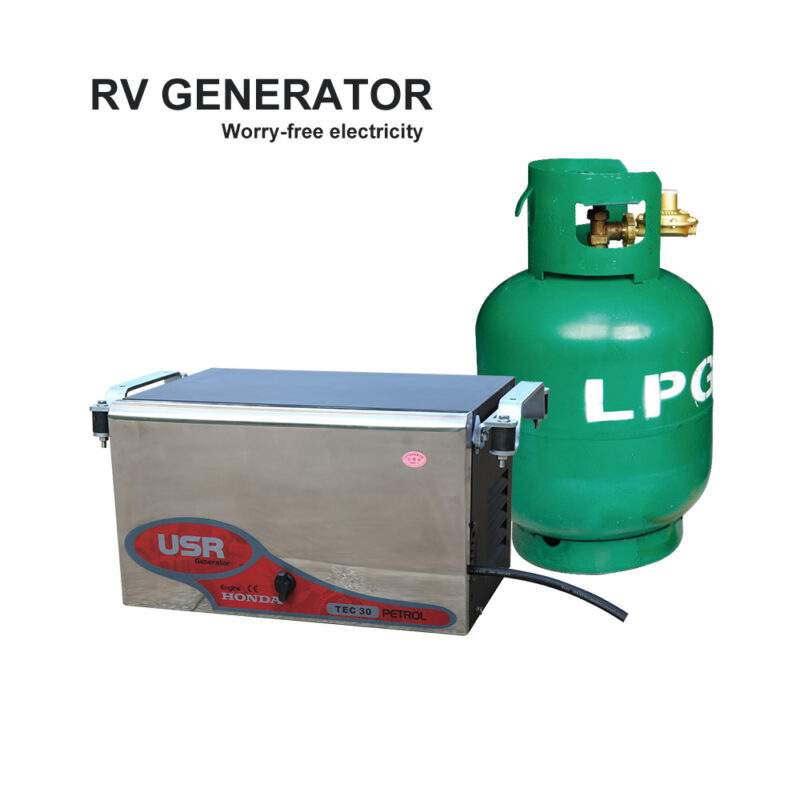

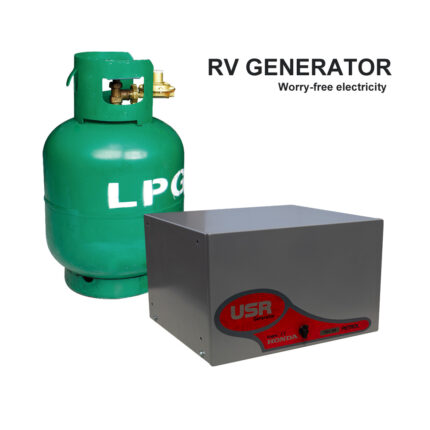

USR PMG Honda motor LPG Generator TEC40-LPG 4kW for RV trailer caravan motorhome motorhouse vehicle
Honda silent power, durable for 1 O years
Ultra-quiet design, low noise and vibration
L arge capacity fuel tank, 26 hours ope「ation
Dedicated fuel filler port for body, no 「estriction on fueling
Small size, bottom installation, no space
Remote panel remote control, convenient and quick
Highly intelligent, multi-functional protection
Innovative frequency conversion technology, energy saving and fuel saving 30%
High-quality power supply, using vari various sensitive electrical appliances
Tri-fuel, Gasoline, LPG, Natural Gas
European vehicle standards, CE certification, EPA environmental emission certification
USR PMG Honda motor LPG Generator TEC40-LPG 4kW for RV trailer caravan motorhome motorhouse vehicle
Description
The new USR TEC Series Generators are powered by Honda engines and designed for the unique demands of campers, recreational or emergency vehicles.
The inverter-modified electrical output ensures smooth power and lowers noise/fuel consumption.
The new and improved USR RV Generators equipped with Pure Sinewave Power Output providing smooth, clean power for running sensitive equipment to meet today’s needs.
Ultra-quiet operation whilst being extremely economical to run, powered by the world-renowned Honda power engines.
USR’s advanced technology, matched with Hondas’ renowned reliability now available for all RV owners around the world.
Features
Pure Sinewave Power
Genuine Honda Engine
Emissions Compliant
Stainless Steel Fuel Tank
Low Noise Operation (Remote muffler included)
Includes Basic Installation Kit
Features
- Advanced digital control panel provides extensive performance and diagnostic data
- Less weight, size and noise
- Extremely quiet (52dba@7meter)
- Safety shutdowns for all critical functions
- Self protected against overload
- VCS electronic governor provides excellent voltage stability
- Permanent magnet alternator
- Ignition protected for gas boat applications
- Gear driven raw water pump
- Robust twin cylinder Kubota diesel engine
- Comes standard with an auto-start feature and NMEA2000
- Comes complete with harnesses, remote control panel, sound enclosure and remote fuel lift pump
- 1 Year limited warranty
Specifcations
| Generator Model | TEC40-LPG |
| Engine | Original Honda engine |
| Technical Data | |
| Maximum output (W) | 4000 |
| Continuous output (W) | 3500 |
| Net weight (kg) | 47 |
| Height (mm) | 290 |
| Depth (mm) | 385 |
| Width (mm) | 480 |
| Width with suspension (mm) | 580 |
| THDV (%) | 1 |
| Frequency (Hz 1%) | 50 |
| Max starting current (A) | 33 |
| Engine | GX 200 |
| Engine output (kW) | 4.3 (5.8HP) |
| Displacement (c㎥) | 198 |
| Consumption max. (l/h) | 1.2 |
| Consumption LPG max. (kg/h) | 1 |
| Sound level (dBA/7m) | 53-60 |
| Guaranteed sound level (dBA) | 85 |
Standard Accessories
The standard accessories of this generator are as follows:
| TEC30-LPG Configuration List | ||||||
| No. | Name | Assembly | QTY. | Unit | Inspect | Note |
| 1 | Generator TEC30 LPG | 1 | Set | |||
| 2 | Controller | 1 | PC | |||
| 3 | Wireless Remote control | 2 | PC | |||
| 4 | Remote cable 5 meters | Installed on genset | 1 | Meters | ||
| 5 | LPG components | 1. LPG switch box 2 Pressure regulating valve 3. High pressure air pipe | 1 | Set | ||
| 6 | Silencer components: | 1. One external muffler, 2. One ternary evaporator, 3. One 85cm metal software tube, 4. One 50cm metal software tube, 2 PC 5.32U type pipe clamps, 6. A 38MM threaded tube with an inner diameter of 0.8 meters. | 1 | Set | ||
| 7 | Generator outer box bracket assembly: | 1. 4 lock frames, 2. 8 rubber washers, 3. M8 * 14mm. 8 screws, 4. M25 * 11 screw washers, 4 pieces. 5. 30 * 30 * 8 rubber feet for shock absorbers, 4 pieces | 1 | Set | ||
| 8 | Fuel filter | Installed on genset | 1 | PC | ||
| 9 | Oil funnel | Black | 1 | PC | ||
| 10 | User’s manual | 1 | PC | |||
| 11 | Engine Manual | 1 | PC | |||
| 12 | Spark plug socket | 1 | PC | |||
| 13 | External electrical components | 1.Power Cable 2.5 meters, 2.AG102 Box | 1 | Set | ||
| 14 | System components of 21L fuel tank No.1 | 1.#1 Fuel tank: 21 liters, size: 36 * 24 * 24cm, 2. Oil filling pipe 38mm-1 meter, 3. M10 vent pipe 1 meter, 4. M40 box holding straps 2PCS 5. M40 box holding rubber 2PCS 6. Oil filling port with lid and key set, 7. M8 * 30 screws 4 PCS 8. M8 washers 4 PCS 9. M8 nuts 4 PCS 10.38mm clamps 4 PCS 11.10mm clamps 4 PCS | 1 | Set | ||
Brochure
Honda Gasoline engine USR RV generator Seiries
Download this series Brochure
USR RV GASOLINE GENERATOR 3-8KW CATALOGUE 20210623
Your support is the source of our progress！
Repair manual
How to repair a generator?
How to repair a gasoline car generator?
How to repair a Honda engine inverter generator?
How to repair a gasoline inverter car generator TEC series?
Please download the following maintenance manual.
Workshop Technical manuals
If your generator still cannot be repaired, please contact us:
Tech@usrgenerator.com,
phone:+86 136 160 88678
User's Manual
Honda engine vehicle RV inverter generator TEC30, TEC40 instruction and operation manual
usr TEC30&40 manaul20230524
