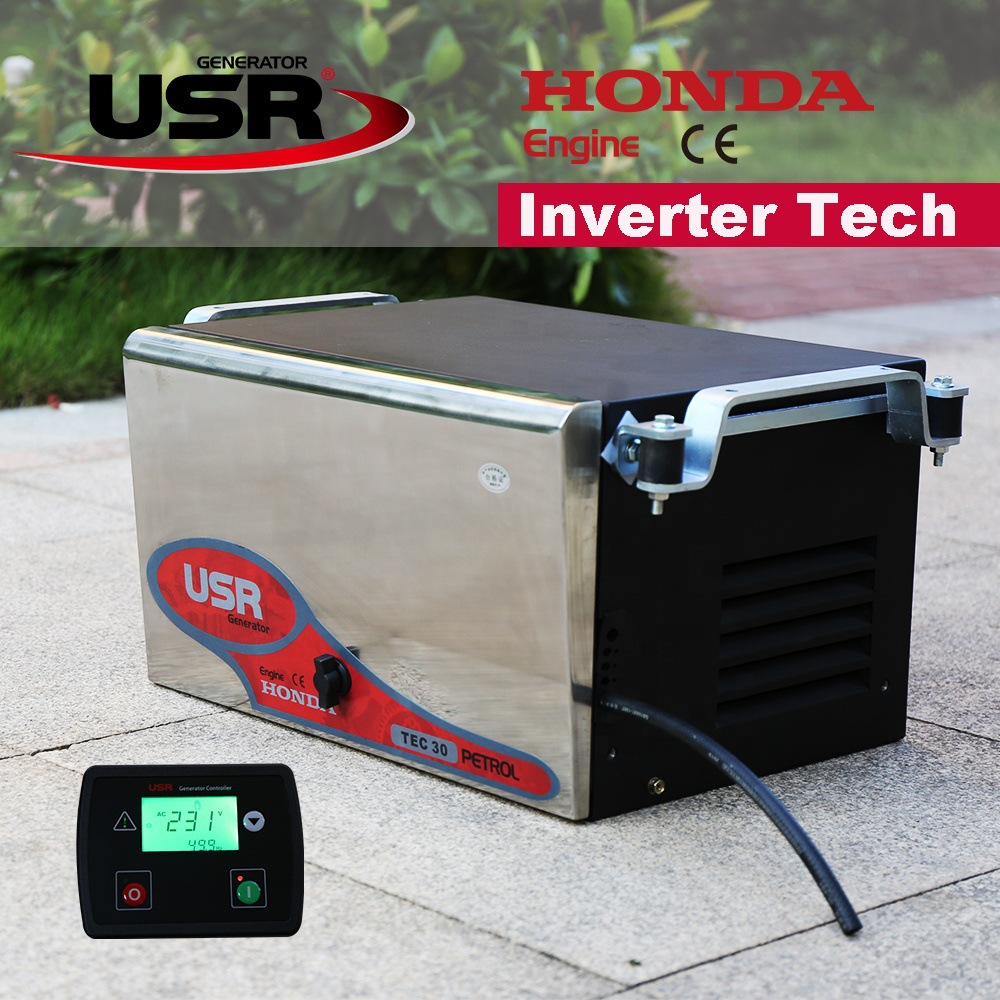

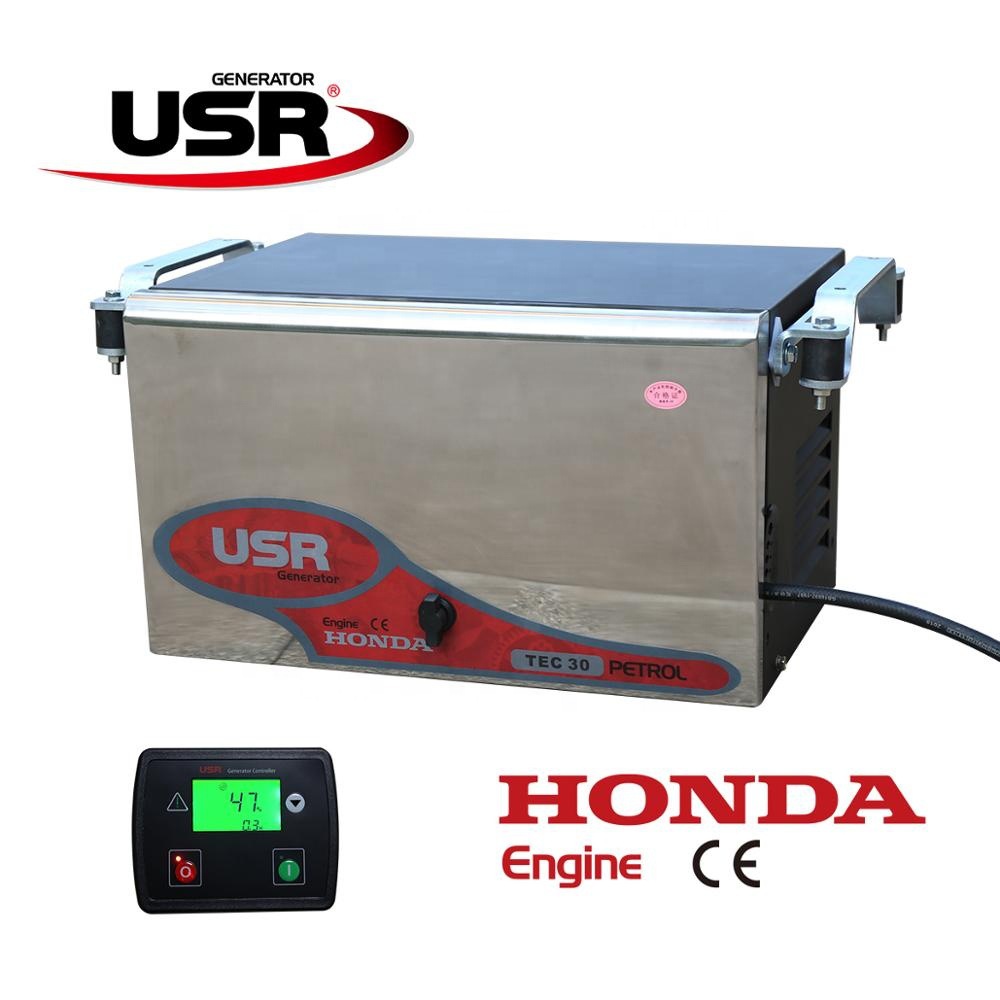

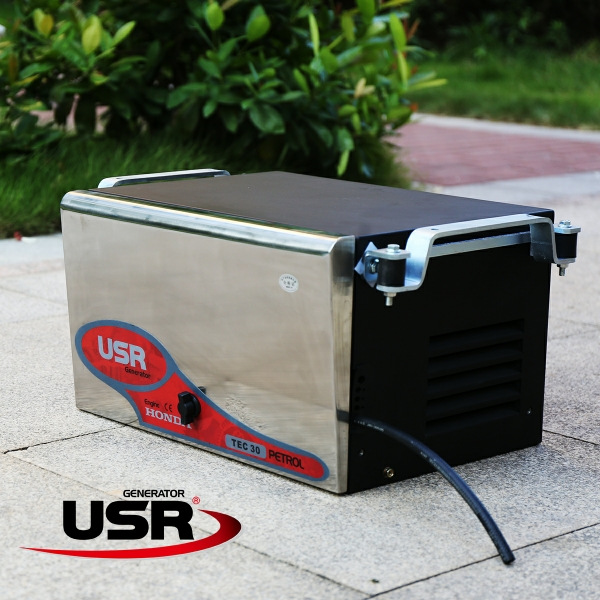

USR PMG Honda engine RV vehicle Generator TEC30 3kW
Honda silent power, durable for 1 O years
Ultra-quiet design, low noise and vibration
L arge capacity fuel tank, 26 hours ope「ation
Dedicated fuel filler port for body, no 「estriction on fueling

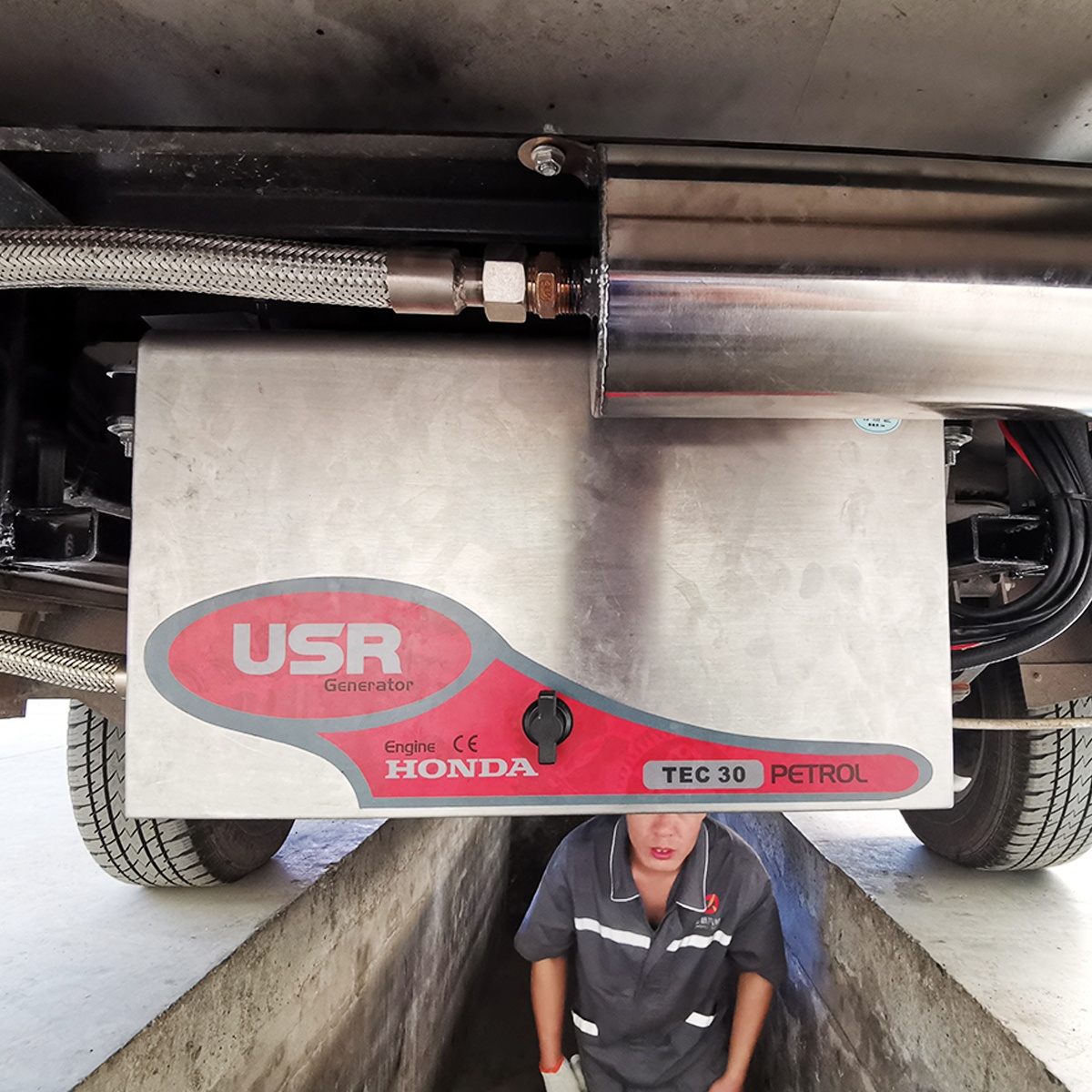

Small size, bottom installation, no space
Remote panel remote control, convenient and quick
Highly intelligent, multi-functional protection
Innovative frequency conversion technology, energy saving and fuel saving 30%
High-quality power supply, using vari various sensitive electrical appliances
European vehicle standards, CE certification, EPA environmental emission certification
USR PMG Honda engine RV vehicle Generator TEC30 3kW
Description
The new USR TEC Series Generators are powered by Honda engines and designed for the unique demands of campers, recreational or emergency vehicles.
The inverter-modified electrical output ensures smooth power and lowers noise/fuel consumption.
The new and improved USR RV Generators equipped with Pure Sinewave Power Output providing smooth, clean power for running sensitive equipment to meet today’s needs.
Ultra-quiet operation whilst being extremely economical to run, powered by the world-renowned Honda power engines.
USR’s advanced technology, matched with Hondas’ renowned reliability now available for all RV owners around the world.
Features
Pure Sinewave Power
Genuine Honda Engine
Emissions Compliant
Stainless Steel Fuel Tank
Low Noise Operation (Remote muffler included)
Includes Basic Installation Kit
Features
- Advanced digital control panel provides extensive performance and diagnostic data
- Less weight, size and noise
- Extremely quiet (52dba@7meter)
- Safety shutdowns for all critical functions
- Self protected against overload
- VCS electronic governor provides excellent voltage stability
- Permanent magnet alternator
- Ignition protected for gas boat applications
- Gear driven raw water pump
- Robust twin cylinder Kubota diesel engine
- Comes standard with an auto-start feature and NMEA2000
- Comes complete with harnesses, remote control panel, sound enclosure and remote fuel lift pump
- 1 Year limited warranty
Specifcations
| Engine | Original Honda engine |
| Technical Data | |
| Maximum output (W) | 3000 |
| Continuous output (W) | 2600 |
| Net weight (kg) | 45 |
| Height (mm) | 290 |
| Depth (mm) | 385 |
| Width (mm) | 480 |
| Width with suspension (mm) | 580 |
| THDV (%) | 1 |
| Frequency (Hz ±1%) | 50 |
| Max starting current (A) | 33 |
| Engine | GX 160/5.5 HP |
| Engine output (kW) | 4.0 (5.5 HP) |
| Displacement (cm³) | 163.4 |
| Consumption max. (l/h) | 1.2 |
| Consumption LPG max. (kg/h) | 1 |
| Sound level (dBA/7m) | 53-60 |
| Guaranteed sound level (dBA) | 85 |
Standard Accessories
The standard accessories of this generator are as follows:
| JEC60/80 Packing list | ||||||
| No. | Name | Descripition | quantity | Unit | Check | Note |
| 1 | Genset JEC60/ 80 | Single phase | 1 | Unit | ||
| 2 | Control penel | USR 706 | 1 | PC | ||
| 3 | Remote controller | 2 | PCS | |||
| 4 | remote control cable | 12*0.75 | 10 | Meter | ||
| 5 | Water lock group | 1.water loack 1pc 2.38mm seawater pipe 1.5m+2m 3.pipe buckle 48-51mm 6 pcs | 1 | Set | ||
| 6 | Coolant tank | Plastic | 1 | PC | ||
| 7 | Engine Maunaul | 1 | PC | |||
| 8 | User Manual | 1 | PC | |||
| 9 | Seawater rubber Pipe | Size16 mm-6m | 1 | Set | ||
| 10 | Pipe buckle | 1. 10-16mm 4 PCS 2. 19-29mm 14 PCS | 1 | SET | ||
| 11 | Engine oil funnel | 1 | PC | |||
| 12 | Tubing components | 1.6mm Fuel pipe 3m*1 2.6mm Fuel pipe 1m*1 3.6mm Fuel pipe 2m*1 4.fuel filter 1pc, | 1 | Set | ||
| 13 | Shock absorber components | 1. Shock absorber 100kg 4 PCS 2. Screws M12 * 35 4 PCS 3. Washers 40 * 12.5 * 3 PCS 4. Spring washers M12 4PCS | 1 | PCS | ||
| 14 | Air breaker | C32 | 4 | PCS | ||
Optional Accessories
Customers can purchase additional payment accessories as needed
Brochure
Honda Gasoline engine USR RV generator Seiries
Download this series Brochure
USR RV GASOLINE GENERATOR 3-8KW CATALOGUE 20210623
Your support is the source of our progress！
Gasoline vehicle generator repair manual
How to repair a generator?
How to repair a gasoline car generator?
How to repair a Honda engine inverter generator?
How to repair a gasoline inverter car generator TEC series?
Please download the following maintenance manual.
Workshop Technical manuals
If your generator still cannot be repaired, please contact us:
Tech@usrgenerator.com,
phone:+86 136 160 88678
User's Manual
Honda engine vehicle RV inverter generator TEC30, TEC40 instruction and operation manual
usr TEC30&40 manaul20230524
