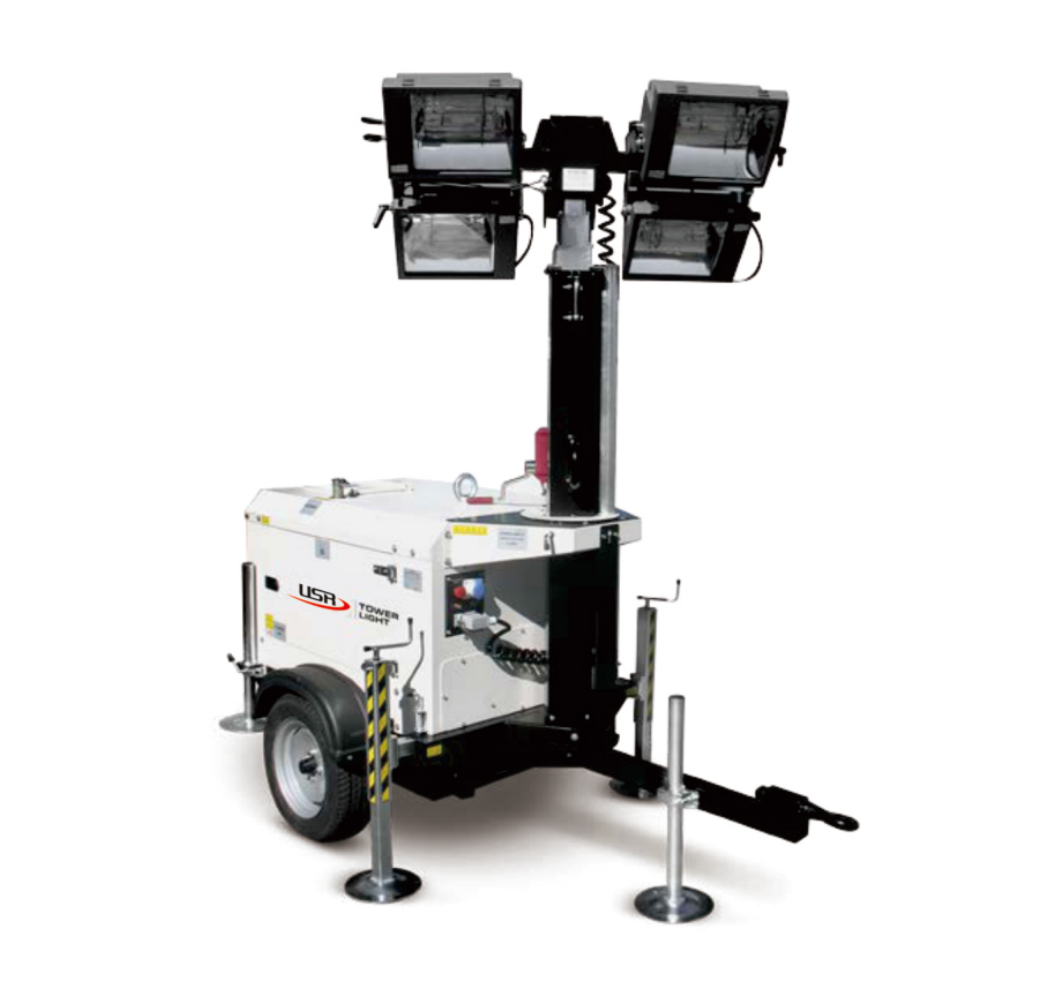

USR Kubota engine water cooled tower light 8kW,10kW
1. 9m hydraulically operated telescopic mast
2. 360° mast rotation
3. Electronic controlled hydraulic system with sustaining valves and hydraulic locks
4. Fault protection
5. Heavy duty, weather-protective enclosure
6. Powerful 4*1000W metal halide lamps
7. Famous brand Japan Kubota, Kohler,Perkins diesel engine generator
8. The unique product design ensures the stability and reliability of operation
The compact footprint and ease of use are two main features that make the VT series light
tower one of the top models in the USR
Tower Light range. High performance
balanced with low cost allowed the VT series to became the best-seller model in the extra
European market.
Products advantage
1. 1000w-4000w industrial portable mobile lighting tower with gasoline and diesel generator is usd to municipal, highway bridge, port, mine, construction sector construction and other field work at night lighting. And also can be used for night repair, disaster scene lighting.
2. 4000 watt metal halide light fixture, high brightness, long service life.
3. Weatherproof switch/control box – ensures the use safely in the rain day.
4. Height adjustable, prevent fall institutions, good wind resistance, security and stability.
5. Manual lifting mechnaism, lifting flexible, any height, automatic lock.
6. Powered by Kubota, Kohler,Perkins diesel generator.
Specifcations
| Brighter | VT8 K | VT10 K | VT8 K LED | VT10 K LED | VT10 KM | VT10 K Y LED | |
| Light coverage m2 | 4.000 (average 20 luxes) |
4.000 (average 20 luxes) |
5.000 (average 20 luxes) |
5.000 (average 20 luxes) |
6.000 (average 20 luxes) |
8.000 (average 20 luxes) |
|
| Lamps | Metal Halide | Metal Halide | LED | LED | Metal Halide | LED | |
| Mast | Laydown or Vertical Manual | Vertical Hydraulic | Laydown or Vertical Manua | Vertical Hydarulic | Laydown Hydarulic | Laydown Hyraulic | |
| Features | Powder coat canopy | Gull wing canopy | Powder coat canopy | Powder coat canop | Powder coat canop | Powder coat canop | |
| Performance Data | |||||||
| Rated Frequency | Hz | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 |
| Rated Voltage | VAC | 230 | 120 | 230 | 120 | 230 | 120 | 230 | 120 | 230 | 120 | 230 or DC48V |
| Rated Power (PRP) | kW | 6 | 8 | 6 | 8 | 4 |5 | 4 |5 | 6 | 8 or higher | 6 |
| Operating Temperature (min / max) |
ºC | -25/50 | |||||
| Sound Pressure Level@1m(LPA) |
dB(A) | 90 | 90 | 86 | 86 | 87 | 89 | 90 |
| Sound Power @ 7m (LPA) | dB(A) | 65 | 65 | 63 | 63 | 71 | 73 | 65 |
| Engine | |||||||
| Model | Kubota D1105-E2BG/Kohler KDW 1003/Yanmar 3TNV76/Perkins 403A-11G |
Kubota D1105-E2BG/Kohler KDW 1003/Yanmar 3TNV76/Perkins 403A-11G |
Kubota Z482/D905/KDW 702/Yanmar 2TNV70 |
Kubota Z482/D905/KDW 702/Yanmar 2TNV70 |
Kubta D1105 or V1505 |
Kubota D1105 or D905 |
|
| Speed | rpm | 1500 | 1800 | 1500 | 1800 | 1500 | 1800 | 1500 | 1800 | 1500 | 1800 | 1500 |
| Rated Net Output (PRP) |
kW | 8.4 | 9,5 | 8.4 | 9,5 | 4 |5 | 4 |5 | 8.4 | 9,5 | 8.4 |
| Coolant | Water | Water | Water | Water | Water | Water | |
| Number of cylinders | 3 | 3 | 2 or 3 | 2 or 3 | 3 | 3 | |
| Alternator | |||||||
| Model | SMU 132C | SMU 132C | SMU 132B | SMU 132B | SMU 132D | SMU 132C or DC48v | |
| Rated output | kVA | 6 | 8 | 6 | 8 | 4 | 5 | 4 | 5 | 8 | 6 |
| Insulation / Enclosure protection | class / IP |
H / 23 | H / 23 | H / 21 | H / 23 | H / 23 | H / 23 |
| Consumption | |||||||
| Fuel tank capacity | litre | 100 | 100 | 70 | 70 | 130 | 130 |
| Runtime before with lamps ON | hrs | 60 | 60 | 100 | 100 | 90 | 65 |
| Power Output | |||||||
| Auxiliary Power | kW | 2 |4 | 2 |4 | 1 | 1 | 2 | 2 | 2|3 |
| Lights | |||||||
| Floodlights | Metal halide | Metal halide | LED | LED | Metal halide | LED | |
| Wattage | W | 4 x 1000 | 4 x 1000 | 4 x 350 | 4 x 350 | 4 x 1500 | 6x 400 |
| Mast | |||||||
| Type | Manual | Hydraulic | Manual | Hydraulic | Hydraulic | Hydraulic | |
| Rotation | degrees | 360 | 360 | 360 | 360 | 360 | 340 |
| Maximum Height | M | 9 or 8 | 9 | 9 or 8 | 9 | 9 | 9 |
| Maximum Speed wind | km / h | 80 | 80 | 80 | 80 | 80 | 80 |
| Enclosure and Trailer |
|||||||
| Type | Ball or hitch fix or adjustable towbar or site trailer with leaf or rubber suspension | ||||||
| Enclosure | Steel canopy and powder coating paint | ||||||
| Dimensions and weigth | |||||||
| Dimensions in transport Fix Towbar (LxWxH) |
M | 1,9 x 1,29 x1,63 | 2,35 x 1,6 x 2,5 | 1,67 x 1,10 x 2,50 | 2,35 x 1,6 x 2,5 | 2,35 x 1,61 x 2,5 | 2,35 x 1,61 x 2,5 |
| Weight | kg | 800 | 1150 | 850 | 1200 | 1860 | 1960 |
