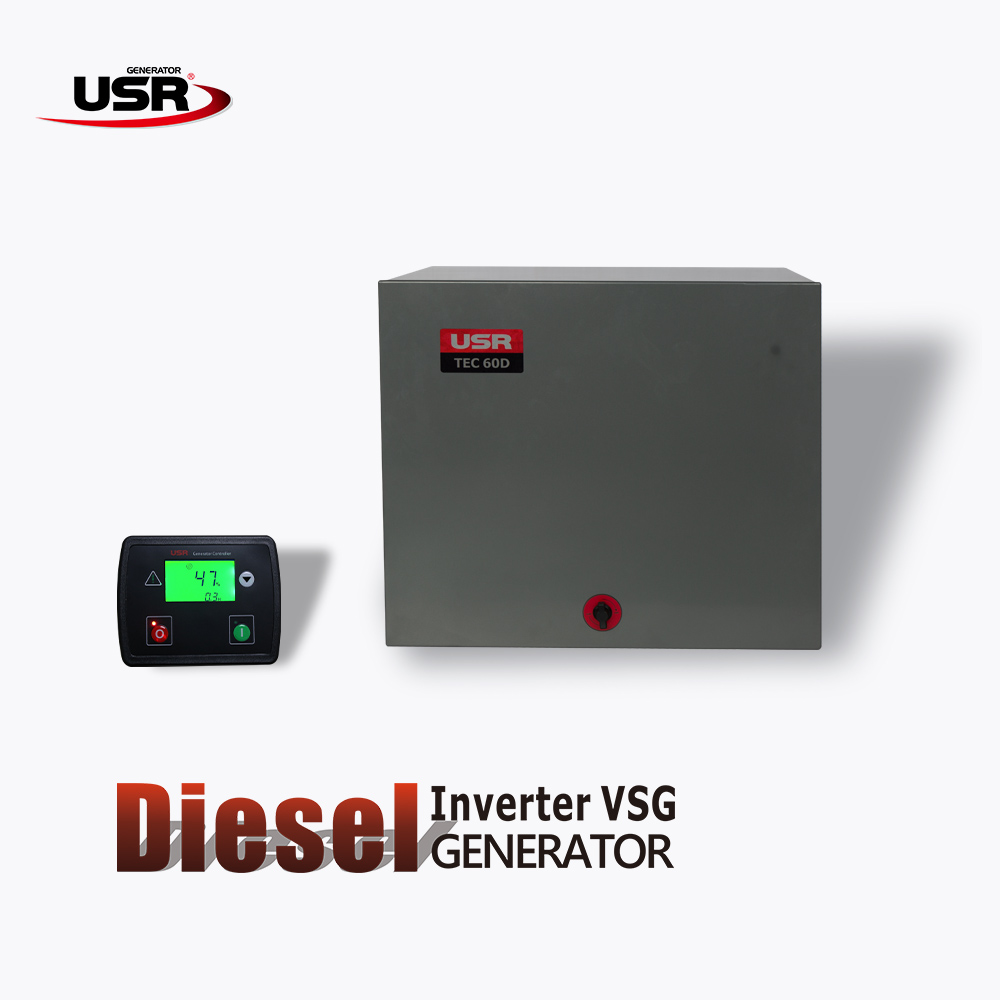

USR PMG Diesel engine RV Vehicle motorhome Generator TEC60d 6kVA
USR silent power, durable for 10 years
Ultra-quiet design, low noise and vibration
L arge capacity fuel tank, 38 hours ope「ation
Dedicated fuel filler port for body, no 「estriction on fueling
Small size, bottom installation, no space
Remote panel remote control, convenient and quick
Highly intelligent, multi-functional protection
Innovative frequency conversion technology, energy saving and fuel saving 30%
High-quality power supply, using vari various sensitive electrical appliances
European vehicle standards, CE certification
USR PMG Diesel engine RV Vehicle motorhome Generator TEC60d 6kVA
Description
The new USR TEC Series Generators are powered by Diesel engines and designed for the unique demands of campers, recreational or emergency vehicles.
The inverter-modified electrical output ensures smooth power and lowers noise/fuel consumption.
The new and improved USR RV Generators equipped with Pure Sinewave Power Output providing smooth, clean power for running sensitive
equipment to meet today’s needs. Ultra-quiet operation whilst being extremely economical to run, powered by the world-renowned Honda power engines.
USR’s advanced technology, matched with Hondas’ renowned reliability now available for all RV owners around the world.
Pure Sinewave Power
Genuine USR Engine
Emissions Compliant
Stainless Steel Fuel Tank
Low Noise Operation (Remote muffler included)
Includes Basic Installation Kit
Features
- Advanced digital control panel provides extensive performance and diagnostic data
- Less weight, size and noise
- Extremely quiet (52dba@7meter)
- Safety shutdowns for all critical functions
- Self protected against overload
- VCS electronic governor provides excellent voltage stability
- Permanent magnet alternator
- Sturdy air-cooled single cylinder USD diesel engine
- Comes standard with an auto-start feature and NMEA2000
- Comes complete with harnesses, remote control panel, sound enclosure and remote fuel lift pump
- 1 Year limited warranty
Specifcations
Generator model: TEC60D
| Engine | USR Diesel engine U192 |
| Technical Data | |
| Maximum output (W) | 6000 |
| Continuous output (W) | 5500 |
| Net weight (kg) | 126 |
| Height (mm) | 560 |
| Depth (mm) | 470 |
| Width (mm) | 640 |
| Width with suspension (mm) | 760 |
| THDV (%) | 1 |
| Frequency (Hz ±1%) | 50 |
| Max starting current (A) | 24 |
| Engine Power | 12.0 HP |
| Engine output (kW) | 9.0 (12.0 HP) |
| Displacement (cm³) | 360 |
| Consumption max. (l/h) | 1.0 |
| Oil capacity (L) | 1.6 |
| Sound level (dBA/7m) | 53-60 |
| Guaranteed sound level (dBA) | 86 |
Standard Accessories
The standard accessories of this generator are as follows:
| TEC60D Packing list | ||||||
| No. | Name | Descripition | quantity | Unit | Check | Note |
| 1 | Genset TEC 60D | 1 | PCS | |||
| 2 | Control penel | 1 | PC | |||
| 3 | remote control cable | 5 | Meter | |||
| 4 | Generator bracket assembly: | 1. lock frames 2 PCS, 2. rubber gaskets 4 PCS, 3. M8 * 14MM screws 8PCS, 4. M25 * 11 screw gaskets 4PCS, 5. Shock absorber rubber feet, 4 PCS | 1 | Set | ||
| 5 | User Manual | 1 | PC | |||
| 6 | Engine oil funnel | 1 | PC | |||
| 7 | AG102 Automatic switching power supply box | 1. Cable0.5 meters, 2. Air switch, 3. Relay, 4. Air switch fixing frame, | 1 | Set | ||
| 8 | Fuel pipe assembly | 1.6mm oil pipe 3m*1 2.6mm oil pipe 1m*1, 3.6mm oil pipe 2m*1 4. Oil filter 1, | ||||
| 9 | External suppressor | 1.8L | 1 | PC | ||
| 10 | Metal Hose | 1.2*1M | 1 | PC | ||
Optional Accessories
Customers can purchase additional payment accessories as needed
| No. | Name | Photo | Descripition | Unit Price | |
| 1 | AG102 |  |
Automatic Exchange Switch(Sity power & Generator power) | USD | 36 |
| 2 | 30L custom fuel tank |  |
AISI 304 Stainless steel Tank | USD | 126 |
| 3 | Filter Exhaust |  |
Odorless exhaust | USD | 126 |
| 4 | Bellows connection |  |
500mm | USD | 8.6 |
Downloads
Honda Gasoline engine USR RV generator Seiries
Download this series Brochure
Download this series User’s Manual
